Revolutionizing Solar Power: A Breakthrough in Perovskite-Silicon Tandem Cells

Share this post!

Harnessing the power of the sun for energy has long been a goal of researchers and scientists worldwide. In a significant stride towards achieving this, an international team of researchers has unveiled a groundbreaking perovskite-silicon tandem solar cell design, marking a remarkable advancement in solar cell technology. This new design boasts a top perovskite photovoltaic (PV) device with an impressive energy bandgap of 1.67 eV, setting a new standard for efficiency and stability in tandem solar cells.

Understanding the Innovation

The core of this innovation lies in the development of a perovskite solar cell with an energy bandgap of 1.67 eV, a feat that stands among the highest bandgaps ever achieved for this type of solar cell. This high bandgap is crucial for the top cell in perovskite-silicon tandem solar devices, where achieving output current matching is a challenge. However, these top cells face issues such as a higher bandgap-voltage offset, primarily due to non-radiative recombination and energetic misalignment between the perovskite and charge-selective layers.

To address this challenge, the research team turned to a novel solution—a self-assembled monolayer (SAM) based on carbazole. This SAM acts as an effective hole-selective layer (HSL), mitigating the bandgap-voltage offset issue. Carbazole-based SAM-HSLs have gained prominence for their stability and energy level alignment with perovskites, and their “electron-rich” nature favors hole selectivity, making them an ideal choice for improving solar cell performance.

The Top Perovskite Cell

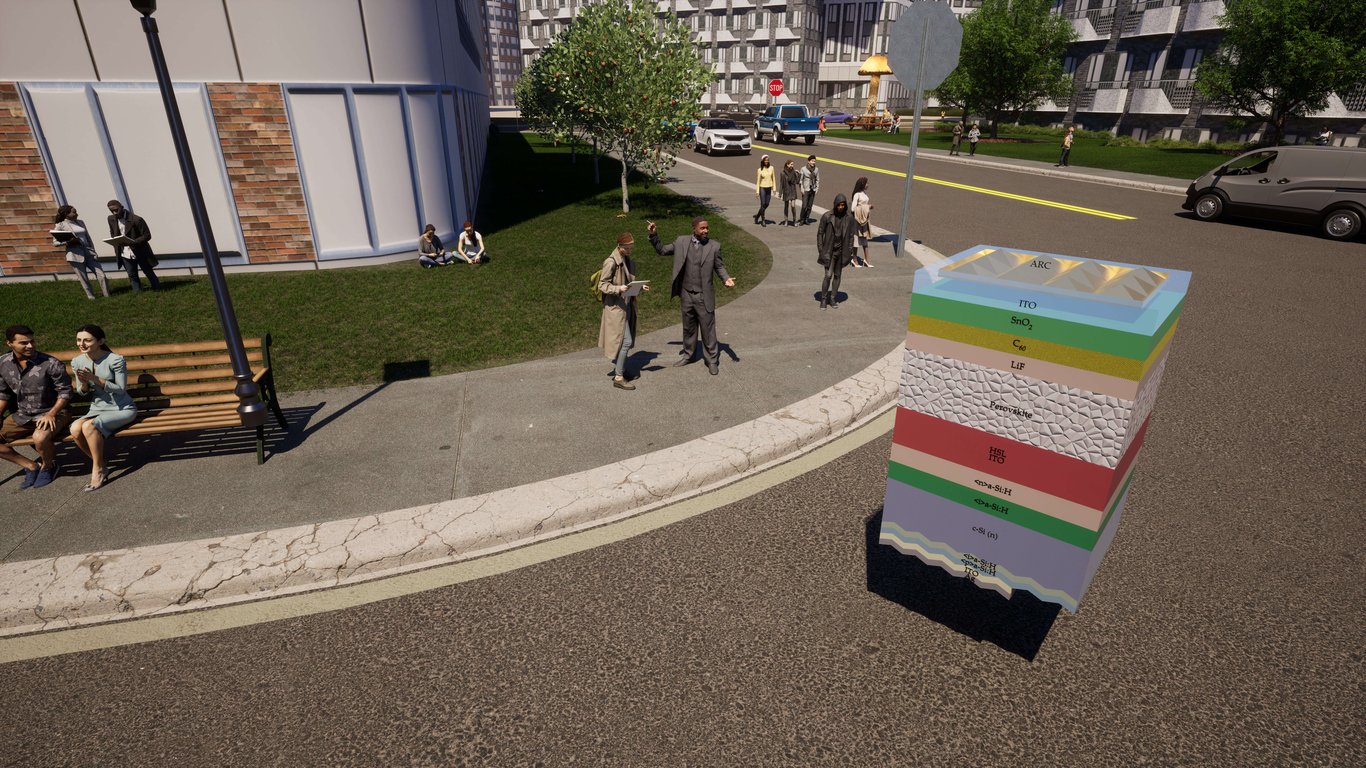

The top perovskite cell, crafted with precision, utilized an indium tin oxide (ITO) substrate, the SAM, a perovskite absorber, a buckminsterfullerene (C60) electron transport layer, a bathocuproine (BCP) buffer layer, and a copper (Cu) metal contact. The impressive results spoke for themselves—a power conversion efficiency of 21.3%, an open-circuit voltage of 1.26 V, a short-circuit density of 20.5 mA/cm2, and a fill factor of 82.6%. The bandgap-voltage offset of 0.41 V was noted as one of the lowest for any 1.67 eV perovskite solar cells, contributing to its record efficiency.

Tandem Solar Cell Performance

Taking this innovation a step further, the researchers integrated the top perovskite cell into a 1.03 cm2 monolithic perovskite-silicon tandem solar cell. The results were nothing short of extraordinary—a power conversion efficiency of 28.9% and an open-circuit voltage of 1.91 V were achieved. Notably, reference cells using different monolayers achieved efficiencies ranging from 25% to 26%, highlighting the superiority of the Ph-2PACz-based tandem device.

Durability and Stability

Aside from efficiency, the research team addressed the crucial aspect of durability. The Ph-2PACz-based tandem device exhibited enhanced damp-heat durability, with negligible performance losses after 280 hours of damp heat exposure. Encouragingly, the encapsulated tandem device retained an impressive 98.8% of its initial efficiency after undergoing 200 thermal cycles, successfully passing the IEC 61215 photovoltaic module standard.

The Future of Solar Energy

The study, titled “Molecular engineering of hole-selective layer for high band gap perovskites for highly efficient and stable perovskite-silicon tandem solar cells,” provides comprehensive insights into the technological advancements achieved by this collaborative research effort. The team, consisting of scientists from the University of Sidney, German research center Forschungszentrum Jülich GmbH, the Southern University of Science and Technology in China, the University of New South Wales (UNSW) in Australia, and the University of Ljubljana in Slovenia, has opened new doors for the future of solar energy.

Conclusion

In conclusion, the development of this perovskite-silicon tandem solar cell with a top perovskite cell featuring a high bandgap of 1.67 eV and a carbazole-based self-assembled monolayer marks a significant milestone in the field of solar energy. The impressive efficiency, coupled with enhanced durability and stability, positions this innovation as a promising candidate for large-scale solar energy applications. As the world continues to seek sustainable and efficient energy solutions, breakthroughs like these pave the way for a brighter and cleaner future powered by the sun.
