Inertial confinement fusion (ICF) offers a promising route to clean and abundant energy by replicating the stellar fusion process on Earth. Researchers at the University of Rochester’s Laboratory for Laser Energetics (LLE) have achieved a significant breakthrough in this field by demonstrating an effective “spark plug” for direct-drive ICF, a critical step towards achieving net energy gain 1 2. This article delves into the details of these groundbreaking experiments, explores the advantages of direct-drive ICF, and discusses the path forward for future fusion facilities.
Illuminating the Path to Fusion Energy
ICF involves compressing a minuscule capsule filled with hydrogen isotopes (deuterium and tritium) using high-powered laser or particle beams. This compression generates extreme heat and pressure, forcing the isotopes to fuse and release a tremendous amount of energy. There are two primary approaches to ICF: direct-drive and indirect-drive. In direct-drive ICF, the laser beams directly irradiate the capsule, causing it to implode. In indirect-drive ICF, the laser beams are converted into X-rays that bathe the capsule, leading to a more symmetrical implosion 1 2.
The OMEGA Laser System and the Spark Plug Innovation

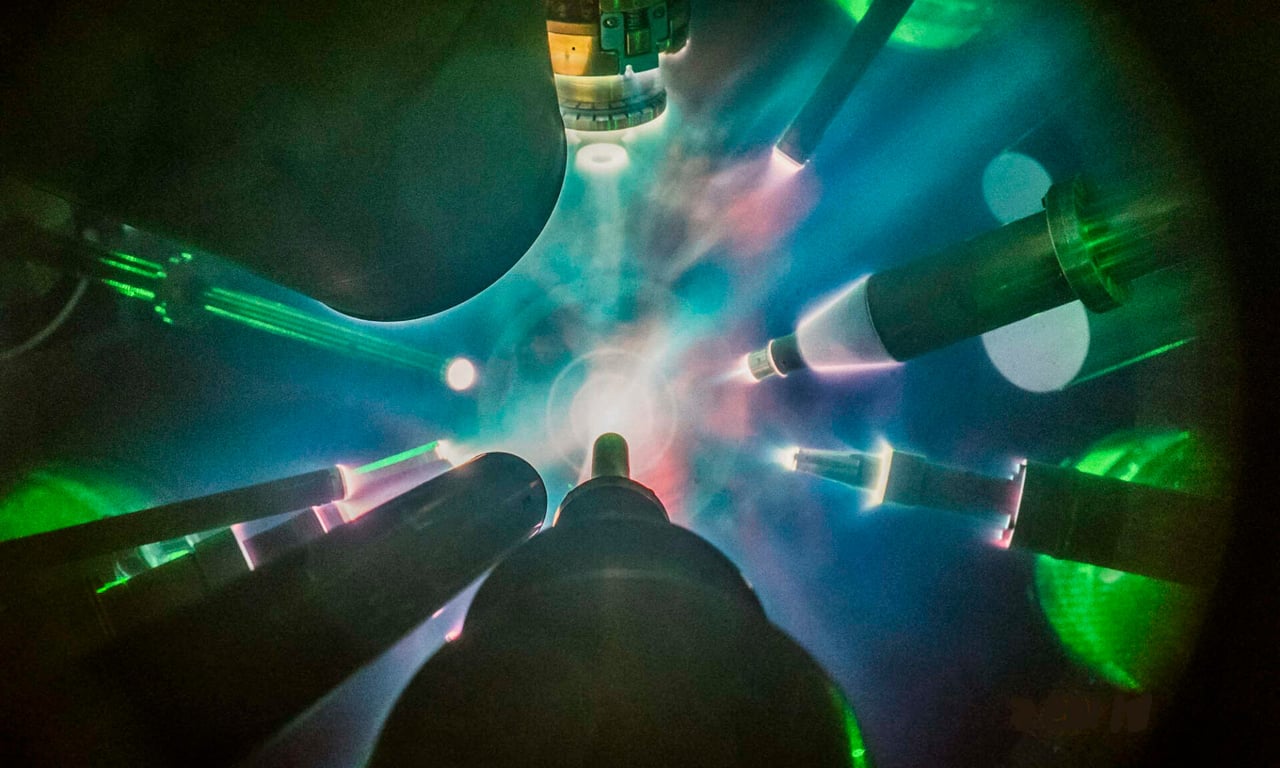

The University of Rochester’s LLE houses the OMEGA laser system, the world’s largest academic laser facility. While dwarfed by the National Ignition Facility (NIF) at Lawrence Livermore National Laboratory in terms of energy output, OMEGA has proven to be a powerful tool for ICF research. In a series of experiments, Rochester scientists successfully delivered 28 kilojoules of laser energy onto capsules filled with deuterium-tritium fuel using the OMEGA laser system 1 2. These experiments achieved a crucial milestone: generating more fusion energy than the amount of energy initially present in the hot plasma at the center of the capsule. This accomplishment, termed “exceeding alpha-burn threshold,” is a significant stepping stone on the path to achieving ignition, where the fusion reaction becomes self-sustaining 1.
The key to achieving this feat lies in the development of a novel “spark plug” design for the target capsule. This design utilizes a specifically shaped layer of high-density material within the capsule that ignites the fusion fuel more efficiently 1 2. The design process benefited from a novel method that leverages statistical predictions validated by machine learning algorithms, significantly reducing the number of physical experiments needed to optimize the capsule design 1 2.
Advantages of Direct-Drive ICF
While both direct-drive and indirect-drive ICF are viable approaches, direct-drive offers several potential advantages. First, it is a simpler approach, requiring less complex laser systems and target designs. Second, the direct illumination of the capsule allows for more precise control over the implosion symmetry 2. Third, direct-drive is thought to be more efficient in terms of laser energy conversion into fusion energy output 2.
Challenges and Considerations
There are also challenges to overcome with direct-drive ICF. One challenge is the requirement for higher laser energy compared to indirect-drive ICF to achieve ignition 2. Additionally, the precise timing and uniformity of the laser beams are critical for successful implosion in direct-drive 2. Further research and development are needed to address these challenges and optimize the direct-drive approach.
The Path to Net Energy Gain
The OMEGA experiments, while significant, represent an initial step on the path to achieving net energy gain from ICF. The OMEGA laser system is not powerful enough to compress sufficient fuel to reach the point of ignition. However, the Rochester team is optimistic that the success of their spark plug design can be translated to future, more powerful laser facilities 2.
Varchas Gopalaswamy, an LLE scientist and lead author of one of the studies, highlights the promise of direct-drive: “If you can eventually create the spark plug and compress fuel, direct drive has a lot of characteristics that are favorable for fusion energy compared to indirect drive” 2. Simulations suggest that by scaling the OMEGA results to lasers with energy outputs in the megajoule range (similar to the NIF), the fusion reactions would become self-sustaining, achieving the coveted state of “burning plasma” 2.
The Role of Machine Learning
The use of machine learning algorithms in the design of the spark plug represents a significant advancement in ICF research. Machine learning can analyze vast amounts of data to identify trends and patterns that would be difficult or impossible to discern through traditional methods. This capability can significantly accelerate the development of new target designs and optimize the efficiency of fusion reactions 1.
Future Directions and Global Implications of Direct-Drive Fusion Research
The Rochester team’s groundbreaking work has garnered significant attention within the fusion research community, with potential implications for future fusion development on a global scale. Here, we explore some key areas of future research and the broader significance of this achievement.
Scaling Up: Towards Megajoule Lasers
A critical next step for direct-drive ICF research is to translate the success of the OMEGA experiments to facilities with more powerful lasers. As mentioned previously, achieving ignition is likely to require laser systems capable of delivering megajoules of energy. The National Ignition Facility (NIF) currently serves as the world’s most powerful laser facility for ICF research. Future facilities, such as the HiPER facility under development in Europe, are being designed specifically for direct-drive ICF with megajoule-class lasers 3. The ability to scale the spark plug design and achieve ignition in these next-generation facilities will be crucial for demonstrating the commercial viability of direct-drive fusion energy.
Advanced Target Designs and Materials
Optimizing target designs and materials will be another area of intense research moving forward. The Rochester team’s spark plug design represents a significant step, but further refinements are likely necessary to achieve peak efficiency and overcome limitations associated with direct-drive ICF. Researchers are exploring advanced materials with superior properties for handling the extreme conditions within the capsule during the implosion process 4. Additionally, advancements in laser focusing and shaping techniques will be crucial for achieving the precise and uniform illumination required for successful direct-drive implosions 2.
International Collaboration and Broader Impacts
ICF research is a globally collaborative effort, with research teams around the world working towards the shared goal of clean and abundant fusion energy. The success of the Rochester experiments highlights the importance of international collaboration in accelerating progress in this field. Information sharing, joint research initiatives, and the development of shared standards will be essential for advancing ICF research efficiently 5.
Beyond the potential for clean energy generation, advancements in ICF research hold broader scientific and technological implications. The extreme temperatures and pressures achieved within ICF capsules can be used to study the properties of matter under conditions not found anywhere else in the universe, providing valuable insights into areas like astrophysics and nuclear physics 6. Additionally, the development of high-power laser technology for ICF research has potential applications in other fields, such as advanced materials manufacturing and medical diagnostics 7.
Conclusion: A Spark of Hope for the Future
The University of Rochester’s demonstration of an effective spark plug for direct-drive ICF is a significant breakthrough with the potential to revolutionize the field of fusion energy. This achievement, coupled with advancements in machine learning and international collaboration, paves the way for future research efforts focused on scaling up laser systems and optimizing target designs. While significant challenges remain, the potential rewards of achieving net energy gain from ICF are immense, offering a clean and sustainable energy source for future generations. The journey towards a fusion-powered future continues, and the spark ignited by the Rochester team offers a beacon of hope in this endeavor.
1. Williams, C. K., et al. (2024). Demonstration of efficient ignition-relevant thermonuclear burn in direct-drive inertial confinement fusion. Nature Physics.
2. Gopalaswamy, V., et al. (2024). The role of direct-drive in achieving thermonuclear ignition in laser fusion. Nature Physics.
3. HiPER Project. http://www.hiperlaser.org/ (2024)
4. Dunne, M. H. (2019). Materials challenges for fusion energy. Nature Materials, 18(9), 875-882.
5. The International Thermonuclear Experimental Reactor (ITER). https://www.iter.org/ (2024)
6. Hurricane, O. A., et al. (2014). Cryogenic thermonuclear burn in inertial confinement fusion. Nature Physics, 10(5), 373-378.
7. Tajima, T. (1998). Laser interaction with matter and its applications. Institute of Physics Publishing.
