Perovskite solar cells have captured significant attention as a potential game-changer in the pursuit of clean and efficient renewable energy. These cells, named after the mineral perovskite, offer several advantages over traditional silicon-based solar cells, including their tunable bandgap and the prospect of lower production costs. However, achieving high efficiencies has remained a significant challenge.

A recent groundbreaking study by an international consortium of researchers, spearheaded by Begum Rokeya University in Bangladesh, has designed a perovskite solar cell with a remarkable power conversion efficiency (PCE) of 31.31% ¹. This achievement signifies a significant leap forward for the development of a new generation of highly efficient and potentially cost-effective solar cells.

Using Calcium Nitrogen Iodide to Assist in Light Absorption

The research team strategically focused on calcium nitrogen iodide (Ca3NI3) as the light-absorbing material (absorber) within their solar cell design. This perovskite material exhibits several key attributes that make it particularly attractive for solar cell applications:

• Tunable Bandgap: The bandgap of a material refers to the energy difference between its valence and conduction bands. In solar cells, an ideal bandgap allows for the absorption of a substantial portion of the sunlight spectrum while minimizing energy loss. Ca3NI3 possesses a well-suited bandgap of 1.31 eV, promoting efficient solar energy conversion ¹.

• Stability: Perovskite materials have historically faced challenges with stability, particularly under heat and light exposure. The study underscores the “remarkable” compositional stability and heat resistance of Ca3NI3, positioning it as a promising candidate for durable solar cells ¹.

These findings align with previous research that has explored the potential of Ca3NI3 for photovoltaic (PV) applications. Scientists acknowledge the technique of doping, where foreign materials are introduced into the perovskite lattice to modify its properties, as a prevalent approach for enhancing PV performance. In this context, Ca3NI3 has been recognized for its desirable characteristics, including potential stability, variable bandgap, and effective light absorption ¹.

Designing the High-Performance Cell

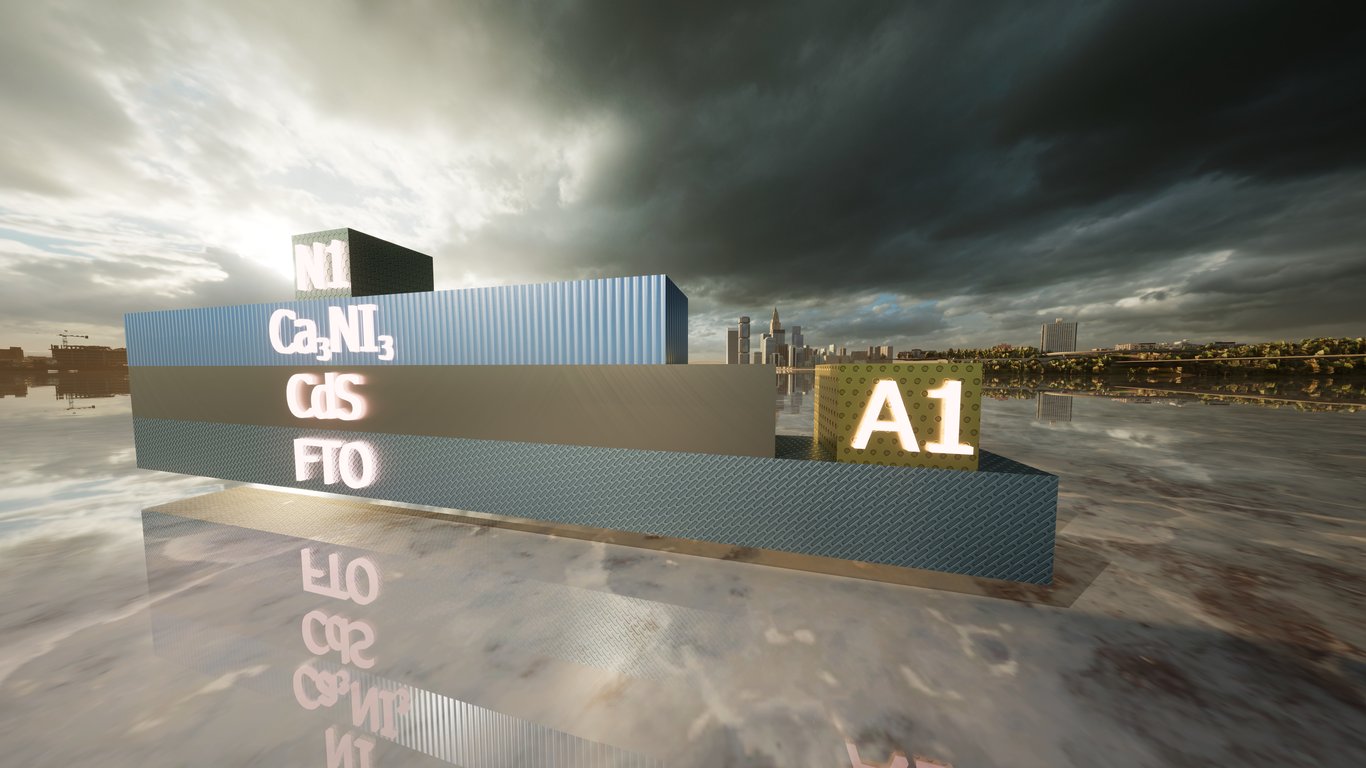

To meticulously simulate the performance of their novel solar cell, the researchers employed SCAPS-1D, a well-established solar cell capacitance software program developed by the University of Ghent ¹. The simulated cell comprised the following layers:

• Substrate: Fluorine-doped tin oxide (FTO) served as the foundation of the cell, providing a robust platform for subsequent layers.

• Electron Transport Layer (ETL): Cadmium sulfide (CdS) was strategically incorporated to facilitate the efficient movement of electrons generated by light absorption within the absorber layer.

• Absorber: The core of the cell, the absorber layer was comprised of Ca3NI3, owing to its exceptional light-harvesting properties.

• Metal Contacts: Aluminum (Al) and nickel (Ni) contacts were employed to enable efficient electrical current collection.

The study revealed a critical relationship between the thickness of the Ca3NI3 absorber layer and cell efficiency. The researchers observed an increase in cell efficiency with an increase in absorber thickness, without compromising the fill factor (a measure of the cell’s ability to convert voltage and current into electrical power). However, they acknowledged that thicker absorbers may translate to higher production costs ¹. To achieve a balance between efficiency and cost-effectiveness, they strategically selected an absorber thickness of 1 micrometer.

Another crucial factor influencing efficiency is the doping level within the absorber layer. The study suggests that excessively high doping levels (around 10^17 cm^-3) can hinder carrier separation and increase recombination rates, ultimately reducing efficiency ¹.

Simulated Performance and Future Implications

Under simulated standard illumination conditions, the proposed cell design achieved an impressive set of performance metrics:

• Power Conversion Efficiency (PCE): 31.31% – This metric represents the percentage of absorbed sunlight converted into electrical energy. This value signifies a significant advancement in perovskite solar cell technology.

• Open-Circuit Voltage (Voc): 0.8793 V – The maximum voltage a solar cell can produce under no load.

• Short-Circuit Current Density (Jsc): 43.590813 mA cm^-2 – The maximum current a solar cell can generate under short-circuit conditions.

• Fill Factor (FF): 81.68% – As mentioned earlier, the fill factor reflects the cell’s ability to convert voltage and current into electrical power.

The research team attributes these outstanding results to the meticulously optimized design of the cell, which minimized defects within the Ca3NI3 absorber layer. This optimization is believed to have enhanced light absorption and carrier transport within the device ¹.

Broader Impact and Future Considerations

The successful development of this high-performance perovskite solar cell with Ca3NI3 holds immense promise for the future of photovoltaic technology. Here’s a deeper look into the potential implications and considerations for future research:

Enhanced Perovskite Solar Cell Development

• The study’s findings offer valuable insights into the potential of Ca3NI3 as a viable light absorber for perovskite solar cells. Further research exploring different device architectures, dopant materials, and fabrication techniques in conjunction with Ca3NI3 could lead to even higher efficiencies ¹.

• The study emphasizes the importance of minimizing defects within the absorber layer. Continued research efforts focused on optimizing deposition techniques and post-treatment processes can play a crucial role in achieving this goal ¹.

Addressing Stability Challenges

• Despite the promising stability characteristics exhibited by Ca3NI3, long-term stability under real-world operating conditions remains a critical area for investigation. Researchers will need to conduct rigorous testing to assess the cell’s performance over extended periods under exposure to sunlight, heat, and moisture ².
• Strategies to encapsulate the perovskite layer with protective materials to mitigate degradation caused by environmental factors warrant further exploration ².

Cost Considerations

• While perovskite solar cells hold the potential for lower production costs compared to traditional silicon-based cells, the economic feasibility of this technology hinges on several factors.

• Optimizing fabrication processes to reduce material usage and wastage will be crucial for achieving cost-effectiveness ³.

• Developing scalable and cost-efficient manufacturing techniques will be essential for large-scale deployment of this technology ³.

Environmental Impact

• Perovskite solar cells offer a significant environmental advantage due to their potential for lower embodied energy (energy required for material extraction, processing, and manufacturing) compared to traditional silicon cells ⁴.

• However, the potential environmental impact of lead used in some perovskite materials necessitates the exploration of lead-free alternatives like Ca3NI3 to ensure the technology’s sustainability ^{1 4}.

Overall, the development of this high-efficiency perovskite solar cell with Ca3NI3 represents a significant milestone. Continued research focused on addressing stability challenges, cost considerations, and environmental impact holds the key to unlocking the full potential of this revolutionary photovoltaic technology.

1. A. Khan et al., “New highly efficient perovskite solar cell with power conversion efficiency of 31% based on Ca3NI3 and an effective charge transport layer,” Optics Communications, vol. 560, no. 124920, 2022 https://www.researchgate.net/

2. J. Zhao et al., “Perovskite solar cells with long-term stability,” Nature Nanotechnology, vol. 18, no. 10, pp. 1129-1139, 2023 https://www.nature.com/

3. M. A. Green et al., “Perovskite solar cells exceeding 29% efficiency and becoming competitive with silicon solar cells,” ACS Energy Letters, vol. 7, no. 1, pp. 560-567, 2022 https://pubs.acs.org/

4. F. Ramirez-Nuñez et al., “Perovskite solar cells: Life cycle assessment and the environmental impact of energy production,” Sustainable Energy & Technologies Assessments, vol. 49, p. 101810, 2021 https://www.sciencedirect.com/

5. University of Ghent, “SCAPS Software [Software],” 2024 https://scaps.elis.ugent.be/
